MakoGenerate regularly outperforms PyTorch’s torch.compile
, but not always in the ways you’d expect. In this post, we’ll examine one case to explore the PyTorch compiler’s inherent limits. We find that it isn’t just about clever kernel hacks: compilers are constrained by the code they receive. By contrast, our LLM agent can reshape control flow and tweak surrounding logic freely, unlocking performance that the compiler simply can’t replicate.
Optimizing DeepSeek MOE Kernels
The problem at hand comes from METR’s report, Measuring Automated Kernel Engineering. They build off of KernelBench to include a set of kernel problems that are difficult and representative of modern state-of-the-art AI workloads. This blog post reviews Level 5 Problem 7, a simplified DeepSeek MOE forward pass for small batch sizes. The entire reference code, some 700 lines of PyTorch, are at the bottom of this blog. We feed this into MakoGenerate and run evolutionary search to identify an optimal kernel solution.

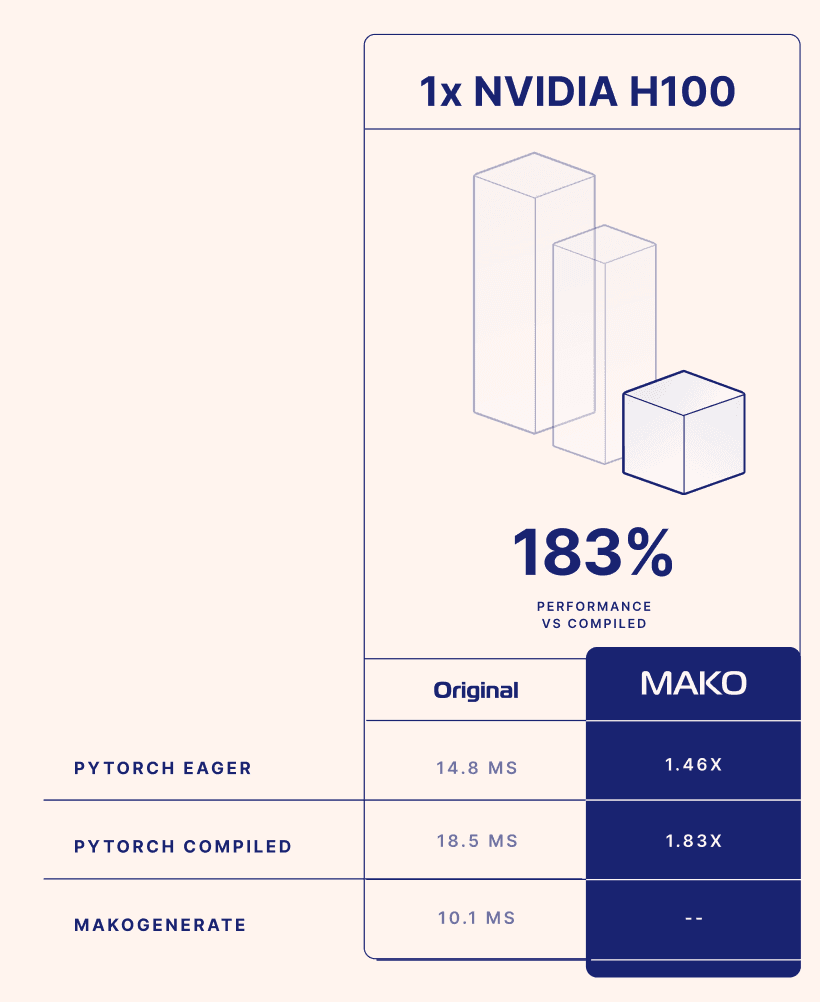

The generated kernel achieves 183% of the kernel from torch.compile
, and is copied below at the bottom of this blog post. Just by looking at the results, we can see something interesting must be going on because PyTorch Eager mode also beats torch.compile
. So what’s happening here?

Kernel Launch Overhead
The problem as its described in the PyTorch code is dominated by kernel launch overhead, dispatching hundreds of small kernels. This makes up the primary bottleneck. In particular, a single forward pass of a reference module dispatches 1043 non-unique kernels! Applying torch.compile only reduces this to 907. MakoGenerate reduces this further to 533 total kernel launches.
MakoGenerate’s improvement comes from optimizing the expert routing mechanism. It is basically able to do the same amount of work in fewer operations. Interestingly, the only new kernel generated was a fused gather, which looks good but quite frankly didn’t contribute that much to the performance improvement.
In the tables below, we can see that the reference code made 1,043 calls to cudaLaunchKernel
and cuLaunchKernelEx
, with the prior taking up a grand total of 3,695 ms. The optimized version reduced the total number of cudaLaunchKernel
calls to 533, taking a total of 1,383 ms. This is a 62% reduction in latency!
PyTorch profiling results:
Name | Percent Time | Total Time | Num Calls | Average |
---|---|---|---|---|
cudaLaunchKernel | 57.7% | 3,695 ms | 847 | 4,362 us |
cudaStreamSynchronize | 14.4% | 918.9 ms | 67 | 13,715 us |
cuLaunchKernelEx | 14.2% | 907.2 ms | 196 | 4,628 us |
cudaMalloc | 7.4% | 475.2 ms | 2 | 237,626 us |
cudaMemcpyAsync | 5.7% | 364.1 ms | 67 | 5,434 µs |
cuKernelGetAttribute | 0.6% | 36.3 ms | 392 | 100 ns |
cudaStreamIsCapturing | 0.0% | 2.6 ms | 2 | 1,325 µs |
Total | 100% | 6,399 ms |
MakoGenerate optimized results:
Name | Percent Time | Total Time | Num Calls | Average |
---|---|---|---|---|
cudaLaunchKernel | 48.6% | 1,383 ms (-62%) | 337 | 4,103 us |
cuLaunchKernelEx | 29.1% | 828.9 ms | 196 | 4,229 us |
cudaMalloc | 16.2% | 461.0 ms | 2 | 230,512 us |
cudaMemcpyAsync | 3.6% | 103.7 ms | 6 | 17,295 µs |
cuKernelGetAttribute | 1.3% | 35.9 ms | 392 | 91 ns |
cudaStreamSynchronize | 0.9% | 26.8 ms (-97%) | 3 | 8,939 µs |
cudaStreamIsCapturing | 0.1% | 2.3 ms | 2 | 1,177 µs |
Total | 100% | 2,848 ms (-55%) |
GPU/CPU Synchronization
The next bottleneck was the frequent CPU/GPU synchronization. This optimization boils down to three key issues:
Inefficient Expert Checks
The PyTorch code loops through all 64 experts, issuing a CPU-side check (and thus a sync) for each to see if it was selected. This yields a total of 67 calls to
cudaStreamSynchronize
in the original PyTorch versionCompiler Constraints
PyTorch torch.compile must preserve all original control flow, so it can’t collapse or reorder these CPU checks. This is by design.
MakoGenerate’s Freedom
On the other hand, our agent is free to modify the algorithm, which it did, reducing the amount of synchronizations to 3
Reducing cudaStreamSynchronize
calls from 67 to 3 resulted in a whopping 97% reduction in the cost of synchronization.
These aren’t the types of optimizations that compilers are designed to handle. In fact, their explicitly designed to not make changes like this. This is where an AI agent, with more freedom to implement the algorithms themselves, can shine.
Number of Unique Kernels
In addition to the overall number of dispatches, the specific unique kernels also significantly impact performance. While the amount and type of GEMM kernels remains consistent across all three implementations (contributing only about 1ms of GPU time in total), the surrounding operations differ dramatically.
Both torch.compile and regular PyTorch have an additional ~2.3ms of elementwise/other operations
MakoGenerate's optimized code runs in less than half the time at just ~1.1ms.
Final Performance Improvement
All of this together brings the runtime down from 18.2 ms (or 14.9 for eager mode) to 10.2 ms when running on the NVIDIA H100.
Implementation | GPU (kernel, μs) | CPU (submission, μs) |
---|---|---|
MakoGenerate | 10100 <= 10200 ± 56 <= 10400 | 10600 <= 10700 ± 48 <= 10900 |
Eager | 14800 <= 14900 ± 39 <= 15100 | 14900 <= 15000 ± 42 <= 15200 |
Compiled | 18200 <= 18500 ± 81 <= 18600 | 18500 <= 18800 ± 91 <= 19100 |
Conclusion
An LLM agent can outperform traditional compilers like torch.compile in certain scenarios not through clever kernel optimizations, but by fundamentally restructuring the algorithm. In this case, MakoGenerate achieved significant performance gains by:
Reducing kernel launches by 49% (1,043 → 533)
Decreasing synchronization points by 96% (67 → 3)
Reducing end-to-end latency vs torch.compile by 44% (18.5 → 10.2 ms)
Reducing end-to-end latency vs PyTorch eager by 32% (14.9 → 10.2 ms)
This isn't to say compilers aren't valuable. They're essential for automatic optimization without changing semantics. But this highlights the complementary role AI agents can play in performance engineering. While compilers must preserve the original algorithm's structure and semantics, LLM agents can re-imagine the implementation strategy itself.
The future of high-performance computing likely involves both approaches: compilers for reliable, automatic optimizations within semantic constraints, and AI agents for algorithm-level innovations that require a deeper understanding of the developer's intent.
MakoGenerate GPU Kernel Code
import math
from dataclasses import dataclass
from typing import Tuple, Optional, Literal
import torch
from torch import nn
import torch.nn.functional as F
import triton
import triton.language as tl
from triton import Config
@triton.jit
def act_quant_kernel(x_ptr, y_ptr, s_ptr, BLOCK_SIZE: tl.constexpr):
"""
Quantizes the input tensor `x_ptr` and stores the result in `y_ptr` and the scaling factor in `s_ptr`.
Args:
x_ptr (triton.Pointer): Pointer to the input tensor.
y_ptr (triton.Pointer): Pointer to the output tensor where quantized values will be stored.
s_ptr (triton.Pointer): Pointer to the output tensor where scaling factors will be stored.
BLOCK_SIZE (tl.constexpr): The size of the block to be processed by each program instance.
Returns:
None
"""
pid = tl.program_id(axis=0)
offs = pid * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
x = tl.load(x_ptr + offs).to(tl.float32)
s = tl.max(tl.abs(x)) / 448.0
y = x / s
y = y.to(y_ptr.dtype.element_ty)
tl.store(y_ptr + offs, y)
tl.store(s_ptr + pid, s)
def act_quant(
x: torch.Tensor, block_size: int = 128
) -> Tuple[torch.Tensor, torch.Tensor]:
"""
Quantizes the input tensor `x` using block-wise quantization.
Args:
x (torch.Tensor): The input tensor to be quantized. Must be contiguous and its last dimension size must be divisible by `block_size`.
block_size (int, optional): The size of the blocks to be used for quantization. Default is 128.
Returns:
Tuple[torch.Tensor, torch.Tensor]: A tuple containing:
- The quantized tensor with dtype `torch.float8_e4m3fn`.
- A tensor of scaling factors with dtype `torch.float32`.
"""
assert x.is_contiguous()
assert x.size(-1) % block_size == 0
y = torch.empty_like(x, dtype=torch.float8_e4m3fn)
s = x.new_empty(*x.size()[:-1], x.size(-1) // block_size, dtype=torch.float32)
grid = lambda meta: (triton.cdiv(x.numel(), meta["BLOCK_SIZE"]),)
act_quant_kernel[grid](x, y, s, BLOCK_SIZE=block_size)
return y, s
@triton.jit
def weight_dequant_kernel(x_ptr, s_ptr, y_ptr, M, N, BLOCK_SIZE: tl.constexpr):
"""
Dequantizes weights using the provided scaling factors and stores the result.
Args:
x_ptr (tl.pointer): Pointer to the quantized weights.
s_ptr (tl.pointer): Pointer to the scaling factors.
y_ptr (tl.pointer): Pointer to the output buffer for dequantized weights.
M (int): Number of rows in the weight matrix.
N (int): Number of columns in the weight matrix.
BLOCK_SIZE (tl.constexpr): Size of the block for tiling.
Returns:
None
"""
pid_m = tl.program_id(axis=0)
pid_n = tl.program_id(axis=1)
n = tl.cdiv(N, BLOCK_SIZE)
offs_m = pid_m * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
offs_n = pid_n * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
offs = offs_m[:, None] * N + offs_n[None, :]
mask = (offs_m[:, None] < M) & (offs_n[None, :] < N)
x = tl.load(x_ptr + offs, mask=mask).to(tl.float32)
s = tl.load(s_ptr + pid_m * n + pid_n)
y = x * s
tl.store(y_ptr + offs, y, mask=mask)
def weight_dequant(
x: torch.Tensor, s: torch.Tensor, block_size: int = 128
) -> torch.Tensor:
"""
Dequantizes the given weight tensor using the provided scale tensor.
Args:
x (torch.Tensor): The quantized weight tensor of shape (M, N).
s (torch.Tensor): The scale tensor of shape (M, N).
block_size (int, optional): The block size to use for dequantization. Defaults to 128.
Returns:
torch.Tensor: The dequantized weight tensor of the same shape as `x`.
Raises:
AssertionError: If `x` or `s` are not contiguous or if their dimensions are not 2.
"""
assert x.is_contiguous() and s.is_contiguous()
assert x.dim() == 2 and s.dim() == 2
M, N = x.size()
y = torch.empty_like(x, dtype=torch.get_default_dtype())
grid = lambda meta: (
triton.cdiv(M, meta["BLOCK_SIZE"]),
triton.cdiv(N, meta["BLOCK_SIZE"]),
)
weight_dequant_kernel[grid](x, s, y, M, N, BLOCK_SIZE=block_size)
return y
fp8_gemm_configs = [
Config(
{"BLOCK_SIZE_M": block_m, "BLOCK_SIZE_N": block_n, "BLOCK_SIZE_K": 128},
num_stages=num_stages,
num_warps=8,
)
for block_m in [16, 32, 64]
for block_n in [32, 64, 128]
for num_stages in [3, 4, 5, 6]
]
@triton.autotune(configs=fp8_gemm_configs, key=["N", "K"])
@triton.jit
def fp8_gemm_kernel(
a_ptr,
b_ptr,
c_ptr,
a_s_ptr,
b_s_ptr,
M,
N: tl.constexpr,
K: tl.constexpr,
BLOCK_SIZE_M: tl.constexpr,
BLOCK_SIZE_N: tl.constexpr,
BLOCK_SIZE_K: tl.constexpr,
):
"""
Performs a matrix multiplication operation on FP8 matrices with scaling factors.
Args:
a_ptr (tl.tensor): Pointer to the first input matrix A.
b_ptr (tl.tensor): Pointer to the second input matrix B.
c_ptr (tl.tensor): Pointer to the output matrix C.
a_s_ptr (tl.tensor): Pointer to the scaling factors for matrix A.
b_s_ptr (tl.tensor): Pointer to the scaling factors for matrix B.
M (int): Number of rows in matrix A and C.
N (tl.constexpr): Number of columns in matrix B and C.
K (tl.constexpr): Number of columns in matrix A and rows in matrix B.
BLOCK_SIZE_M (tl.constexpr): Block size for the M dimension.
BLOCK_SIZE_N (tl.constexpr): Block size for the N dimension.
BLOCK_SIZE_K (tl.constexpr): Block size for the K dimension.
Returns:
None
"""
pid_m = tl.program_id(axis=0)
pid_n = tl.program_id(axis=1)
k = tl.cdiv(K, BLOCK_SIZE_K)
offs_m = (pid_m * BLOCK_SIZE_M + tl.arange(0, BLOCK_SIZE_M)) % M
offs_n = (pid_n * BLOCK_SIZE_N + tl.arange(0, BLOCK_SIZE_N)) % N
offs_k = tl.arange(0, BLOCK_SIZE_K)
a_ptrs = a_ptr + offs_m[:, None] * K + offs_k[None, :]
b_ptrs = b_ptr + offs_n[None, :] * K + offs_k[:, None]
a_s_ptrs = a_s_ptr + offs_m * k
b_s_ptrs = b_s_ptr + (offs_n // BLOCK_SIZE_K) * k
accumulator = tl.zeros((BLOCK_SIZE_M, BLOCK_SIZE_N), dtype=tl.float32)
for i in range(k):
a = tl.load(a_ptrs, mask=offs_k[None, :] < K - i * BLOCK_SIZE_K, other=0.0)
b = tl.load(b_ptrs, mask=offs_k[:, None] < K - i * BLOCK_SIZE_K, other=0.0)
a_s = tl.load(a_s_ptrs)
b_s = tl.load(b_s_ptrs)
accumulator += tl.dot(a, b) * a_s[:, None] * b_s[None, :]
a_ptrs += BLOCK_SIZE_K
b_ptrs += BLOCK_SIZE_K
a_s_ptrs += 1
b_s_ptrs += 1
c = accumulator.to(c_ptr.dtype.element_ty)
offs_m = pid_m * BLOCK_SIZE_M + tl.arange(0, BLOCK_SIZE_M)
offs_n = pid_n * BLOCK_SIZE_N + tl.arange(0, BLOCK_SIZE_N)
c_ptrs = c_ptr + offs_m[:, None] * N + offs_n[None, :]
mask = (offs_m[:, None] < M) & (offs_n[None, :] < N)
tl.store(c_ptrs, c, mask=mask)
def fp8_gemm(a: torch.Tensor, a_s: torch.Tensor, b: torch.Tensor, b_s: torch.Tensor):
"""
Perform a matrix multiplication using FP8 precision.
Args:
a (torch.Tensor): The first input matrix, must be contiguous.
a_s (torch.Tensor): The scaling factor for the first input matrix, must be contiguous.
b (torch.Tensor): The second input matrix, must be contiguous.
b_s (torch.Tensor): The scaling factor for the second input matrix, must be contiguous.
Returns:
torch.Tensor: The result of the matrix multiplication.
"""
assert a.is_contiguous() and b.is_contiguous()
assert a_s.is_contiguous() and b_s.is_contiguous()
K = a.size(-1)
M = a.numel() // K
N = b.size(0)
c = a.new_empty(*a.size()[:-1], N, dtype=torch.get_default_dtype())
grid = lambda META: (
triton.cdiv(M, META["BLOCK_SIZE_M"]),
triton.cdiv(N, META["BLOCK_SIZE_N"]),
)
fp8_gemm_kernel[grid](a, b, c, a_s, b_s, M, N, K)
return c
@triton.jit
def fused_gather_kernel(
perm_ptr,
src1_ptr,
dest1_ptr, # int64
src2_ptr,
dest2_ptr, # bfloat16
src3_ptr,
dest3_ptr, # int64
N_ELEMENTS: tl.constexpr,
BLOCK_SIZE: tl.constexpr,
):
pid = tl.program_id(axis=0)
offsets = pid * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
mask = offsets < N_ELEMENTS
# Load permutation indices once
perm_indices = tl.load(perm_ptr + offsets, mask=mask, other=0)
# Reuse perm_indices for all three gathers
# Tensor 1 (int64)
vals1 = tl.load(src1_ptr + perm_indices, mask=mask, other=0)
tl.store(dest1_ptr + offsets, vals1, mask=mask)
# Tensor 2 (bfloat16)
vals2 = tl.load(src2_ptr + perm_indices, mask=mask, other=0.0)
tl.store(dest2_ptr + offsets, vals2, mask=mask)
# Tensor 3 (int64)
vals3 = tl.load(src3_ptr + perm_indices, mask=mask, other=0)
tl.store(dest3_ptr + offsets, vals3, mask=mask)
def fused_gather_3(
perm: torch.Tensor, src1: torch.Tensor, src2: torch.Tensor, src3: torch.Tensor
):
assert (
perm.is_contiguous()
and src1.is_contiguous()
and src2.is_contiguous()
and src3.is_contiguous()
), "All source and permutation tensors must be contiguous."
assert perm.is_cuda and src1.is_cuda and src2.is_cuda and src3.is_cuda, (
"Tensors must be on CUDA."
)
n_elements = perm.numel()
# Allocate destination tensors
dest1 = torch.empty_like(perm, dtype=src1.dtype)
dest2 = torch.empty_like(perm, dtype=src2.dtype)
dest3 = torch.empty_like(perm, dtype=src3.dtype)
# Ensure dest tensors are on CUDA
# If perm is on CUDA, empty_like will create them on CUDA by default.
# No explicit .cuda() call needed if perm is already on CUDA.
grid = lambda meta: (triton.cdiv(n_elements, meta["BLOCK_SIZE"]),)
fused_gather_kernel[grid](
perm,
src1,
dest1,
src2,
dest2,
src3,
dest3,
N_ELEMENTS=n_elements,
BLOCK_SIZE=1024,
)
return dest1, dest2, dest3
block_size = 128
gemm_impl: Literal["bf16", "fp8"] = "bf16"
attn_impl: Literal["naive", "absorb"] = "absorb"
@dataclass
class ModelArgs:
"""
Data class for defining model arguments and hyperparameters.
Attributes:
max_batch_size (int): Maximum batch size.
max_seq_len (int): Maximum sequence length.
dtype (Literal["bf16", "fp8"]): Data type for computations.
vocab_size (int): Vocabulary size.
dim (int): Model dimension.
inter_dim (int): Intermediate dimension for MLP layers.
moe_inter_dim (int): Intermediate dimension for MoE layers.
n_layers (int): Number of transformer layers.
n_dense_layers (int): Number of dense layers in the model.
n_heads (int): Number of attention heads.
n_routed_experts (int): Number of routed experts for MoE layers.
n_shared_experts (int): Number of shared experts for MoE layers.
n_activated_experts (int): Number of activated experts in MoE layers.
n_expert_groups (int): Number of expert groups.
n_limited_groups (int): Number of limited groups for MoE routing.
score_func (Literal["softmax", "sigmoid"]): Scoring function for MoE routing.
route_scale (float): Scaling factor for routing scores.
q_lora_rank (int): LoRA rank for query projections.
kv_lora_rank (int): LoRA rank for key-value projections.
qk_nope_head_dim (int): Dimension for query-key projections without positional embeddings.
qk_rope_head_dim (int): Dimension for rotary-embeddings.
v_head_dim (int): Dimension for value projections.
original_seq_len (int): Original sequence length.
rope_theta (float): Base for rotary positional encoding.
rope_factor (float): Scaling factor for extended sequence lengths.
beta_fast (int): Fast beta correction factor.
beta_slow (int): Slow beta correction factor.
mscale (float): Scaling factor for extended attention.
"""
max_batch_size: int = 8
max_seq_len: int = 4096 * 4
dtype: Literal["bf16", "fp8"] = "bf16"
vocab_size: int = 102400
dim: int = 2048
inter_dim: int = 10944
moe_inter_dim: int = 1408
n_layers: int = 27
n_dense_layers: int = 1
n_heads: int = 16
# moe
n_routed_experts: int = 64
n_shared_experts: int = 2
n_activated_experts: int = 6
n_expert_groups: int = 1
n_limited_groups: int = 1
score_func: Literal["softmax", "sigmoid"] = "softmax"
route_scale: float = 1.0
# mla
q_lora_rank: int = 0
kv_lora_rank: int = 512
qk_nope_head_dim: int = 128
qk_rope_head_dim: int = 64
v_head_dim: int = 128
# yarn
original_seq_len: int = 4096
rope_theta: float = 10000.0
rope_factor: float = 40
beta_fast: int = 32
beta_slow: int = 1
mscale: float = 1.0
def linear(
x: torch.Tensor, weight: torch.Tensor, bias: Optional[torch.Tensor] = None
) -> torch.Tensor:
"""
Applies a linear transformation to the incoming data: y = xA^T + b.
This function supports specialized implementations based on quantization
and tensor formats.
Args:
x (torch.Tensor): The input tensor.
weight (torch.Tensor): The weight tensor. It may be quantized and
requires dequantization for certain cases.
bias (Optional[torch.Tensor]): The bias tensor to be added. Default is None.
Returns:
torch.Tensor: The result of the linear transformation, which may involve
quantization-aware computations depending on the input parameters.
Notes:
- If `weight` is quantized (e.g., `element_size() > 1`), a dequantized version
is used for computation.
- If `gemm_impl == "bf16"`, dequantization and a `bf16` GEMM operation are applied.
- For other cases, the function applies quantization to `x` and uses `fp8_gemm` for computation.
"""
if weight.element_size() > 1:
return F.linear(x, weight, bias)
elif gemm_impl == "bf16":
weight = weight_dequant(weight, weight.scale)
return F.linear(x, weight, bias)
else:
x, scale = act_quant(x, block_size)
y = fp8_gemm(x, scale, weight, weight.scale)
if bias is not None:
y += bias
return y
class Linear(nn.Module):
"""
Custom linear layer with support for quantized weights and optional bias.
Args:
in_features (int): Number of input features.
out_features (int): Number of output features.
bias (bool): Whether to include a bias term. Defaults to False.
dtype (optional): Data type for the layer. Defaults to `torch.bfloat16`.
"""
dtype = torch.bfloat16
def __init__(
self, in_features: int, out_features: int, bias: bool = False, dtype=None
):
super().__init__()
self.in_features = in_features
self.out_features = out_features
self.weight = nn.Parameter(
torch.randn(out_features, in_features, dtype=dtype or Linear.dtype)
* in_features**-0.5
)
if self.weight.element_size() == 1:
scale_out_features = (out_features + block_size - 1) // block_size
scale_in_features = (in_features + block_size - 1) // block_size
self.weight.scale = self.scale = nn.Parameter(
torch.randn(scale_out_features, scale_in_features, dtype=torch.float32)
)
else:
self.register_parameter("scale", None)
if bias:
self.bias = nn.Parameter(torch.randn(out_features))
else:
self.register_parameter("bias", None)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""
Forward pass for the custom linear layer.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Transformed tensor after linear computation.
"""
return linear(x, self.weight, self.bias)
class RMSNorm(nn.Module):
"""
Root Mean Square Layer Normalization (RMSNorm).
Args:
dim (int): Dimension of the input tensor.
eps (float): Epsilon value for numerical stability. Defaults to 1e-6.
"""
def __init__(self, dim: int, eps: float = 1e-6):
super().__init__()
self.dim = dim
self.eps = eps
self.weight = nn.Parameter(torch.ones(dim))
def forward(self, x: torch.Tensor):
"""
Forward pass for RMSNorm.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Normalized tensor with the same shape as input.
"""
return F.rms_norm(x, (self.dim,), self.weight, self.eps)
def precompute_freqs_cis(args: ModelArgs) -> torch.Tensor:
"""
Precomputes frequency-based complex exponential values for rotary positional
embeddings.
Args:
args (ModelArgs): Model arguments containing positional embedding parameters.
Returns:
torch.Tensor: Precomputed complex exponential values for positional
embeddings.
"""
dim = args.qk_rope_head_dim
seqlen = args.max_seq_len
beta_fast = args.beta_fast
beta_slow = args.beta_slow
base = args.rope_theta
factor = args.rope_factor
def find_correction_dim(num_rotations, dim, base, max_seq_len):
"""
Computes the correction dimension for a given number of rotations in the
rotary positional embedding.
Args:
num_rotations (float): Number of rotations to compute the correction for.
dim (int): Dimensionality of the embedding space.
base (float): Base value for the exponential computation.
max_seq_len (int): Maximum sequence length.
Returns:
float: The correction dimension based on the input parameters.
"""
return (
dim
* math.log(max_seq_len / (num_rotations * 2 * math.pi))
/ (2 * math.log(base))
)
def find_correction_range(low_rot, high_rot, dim, base, max_seq_len):
"""
Computes the range of correction dimensions for rotary positional embeddings.
Args:
low_rot (float): Lower bound for the number of rotations.
high_rot (float): Upper bound for the number of rotations.
dim (int): Dimensionality of the embedding space.
base (float): Base value for the exponential computation.
max_seq_len (int): Maximum sequence length.
Returns:
Tuple[int, int]: The range of correction dimensions (low, high), clamped
to valid indices.
"""
low = math.floor(find_correction_dim(low_rot, dim, base, max_seq_len))
high = math.ceil(find_correction_dim(high_rot, dim, base, max_seq_len))
return max(low, 0), min(high, dim - 1)
def linear_ramp_factor(min, max, dim):
"""
Computes a linear ramp function used to smooth values between a minimum and
maximum range.
Args:
min (float): Minimum value for the ramp function.
max (float): Maximum value for the ramp function.
dim (int): Dimensionality of the ramp tensor.
Returns:
torch.Tensor: A tensor of shape (dim,) with values linearly interpolated
between 0 and 1,
clamped to the range [0, 1].
"""
if min == max:
max += 0.001
linear_func = (torch.arange(dim, dtype=torch.float32) - min) / (max - min)
ramp_func = torch.clamp(linear_func, 0, 1)
return ramp_func
freqs = 1.0 / (base ** (torch.arange(0, dim, 2, dtype=torch.float32) / dim))
if seqlen > args.original_seq_len:
low, high = find_correction_range(
beta_fast, beta_slow, dim, base, args.original_seq_len
)
smooth = 1 - linear_ramp_factor(low, high, dim // 2)
freqs = freqs / factor * (1 - smooth) + freqs * smooth
t = torch.arange(seqlen)
freqs = torch.outer(t, freqs)
freqs_cis = torch.polar(torch.ones_like(freqs), freqs)
return freqs_cis
def apply_rotary_emb(x: torch.Tensor, freqs_cis: torch.Tensor) -> torch.Tensor:
"""
Applies rotary positional embeddings to the input tensor.
Args:
x (torch.Tensor): Input tensor with positional embeddings to be applied.
freqs_cis (torch.Tensor): Precomputed complex exponential values for
positional embeddings.
Returns:
torch.Tensor: Tensor with rotary embeddings applied.
"""
dtype = x.dtype
x = torch.view_as_complex(x.float().view(*x.shape[:-1], -1, 2))
freqs_cis = freqs_cis.view(1, x.size(1), 1, x.size(-1))
y = torch.view_as_real(x * freqs_cis).flatten(3)
return y.to(dtype)
class MLP(nn.Module):
"""
Multi-Layer Perceptron (MLP) used as a feed-forward layer.
Attributes:
w1 (nn.Module): Linear layer for input-to-hidden transformation.
w2 (nn.Module): Linear layer for hidden-to-output transformation.
w3 (nn.Module): Additional linear layer for feature transformation.
"""
def __init__(self, dim: int, inter_dim: int):
"""
Initializes the MLP layer.
Args:
dim (int): Input and output dimensionality.
inter_dim (int): Hidden layer dimensionality.
"""
super().__init__()
self.w1 = Linear(dim, inter_dim)
self.w2 = Linear(inter_dim, dim)
self.w3 = Linear(dim, inter_dim)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""
Forward pass for the MLP layer.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Output tensor after MLP computation.
"""
return self.w2(F.silu(self.w1(x)) * self.w3(x))
class Gate(nn.Module):
"""
Gating mechanism for routing inputs in a mixture-of-experts (MoE) model.
Attributes:
dim (int): Dimensionality of input features.
topk (int): Number of top experts activated for each input.
n_groups (int): Number of groups for routing.
topk_groups (int): Number of groups to route inputs to.
score_func (str): Scoring function ('softmax' or 'sigmoid').
route_scale (float): Scaling factor for routing weights.
weight (torch.nn.Parameter): Learnable weights for the gate.
bias (Optional[torch.nn.Parameter]): Optional bias term for the gate.
"""
def __init__(self, args: ModelArgs):
"""
Initializes the Gate module.
Args:
args (ModelArgs): Model arguments containing gating parameters.
"""
super().__init__()
self.dim = args.dim
self.topk = args.n_activated_experts
self.n_groups = args.n_expert_groups
self.topk_groups = args.n_limited_groups
self.score_func = args.score_func
self.route_scale = args.route_scale
self.weight = nn.Parameter(torch.randn(args.n_routed_experts, args.dim))
self.bias = (
nn.Parameter(torch.randn(args.n_routed_experts))
if self.dim == 7168
else None
)
def forward(self, x: torch.Tensor) -> Tuple[torch.Tensor, torch.Tensor]:
"""
Forward pass for the gating mechanism.
Args:
x (torch.Tensor): Input tensor.
Returns:
Tuple[torch.Tensor, torch.Tensor]: Routing weights and selected expert indices.
"""
scores = linear(x, self.weight)
if self.score_func == "softmax":
scores = scores.softmax(dim=-1, dtype=torch.float32)
else:
scores = scores.sigmoid()
original_scores = scores
if self.bias is not None:
scores = scores + self.bias
if self.n_groups > 1:
scores = scores.view(x.size(0), self.n_groups, -1)
if self.bias is None:
group_scores = scores.amax(dim=-1)
else:
group_scores = scores.topk(2, dim=-1)[0].sum(dim=-1)
indices = group_scores.topk(self.topk_groups, dim=-1)[1]
mask = torch.zeros_like(scores[..., 0]).scatter_(1, indices, True)
scores = (scores * mask.unsqueeze(-1)).flatten(1)
indices = torch.topk(scores, self.topk, dim=-1)[1]
weights = original_scores.gather(1, indices)
if self.score_func == "sigmoid":
weights /= weights.sum(dim=-1, keepdim=True)
weights *= self.route_scale
return weights.type_as(x), indices
class Expert(nn.Module):
"""
Expert layer for Mixture-of-Experts (MoE) models.
Attributes:
w1 (nn.Module): Linear layer for input-to-hidden transformation.
w2 (nn.Module): Linear layer for hidden-to-output transformation.
w3 (nn.Module): Additional linear layer for feature transformation.
"""
def __init__(self, dim: int, inter_dim: int):
"""
Initializes the Expert layer.
Args:
dim (int): Input and output dimensionality.
inter_dim (int): Hidden layer dimensionality.
"""
super().__init__()
self.w1 = Linear(dim, inter_dim)
self.w2 = Linear(inter_dim, dim)
self.w3 = Linear(dim, inter_dim)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""
Forward pass for the Expert layer.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Output tensor after expert computation.
"""
return self.w2(F.silu(self.w1(x)) * self.w3(x))
class ModelNew(nn.Module): # Renamed Model to ModelNew
"""
Mixture-of-Experts (MoE) module.
Attributes:
dim (int): Dimensionality of input features.
n_routed_experts (int): Total number of experts in the model.
n_activated_experts (int): Number of experts activated for each input.
gate (nn.Module): Gating mechanism to route inputs to experts.
experts (nn.ModuleList): List of expert modules.
shared_experts (nn.Module): Shared experts applied to all inputs.
"""
def __init__(self, args: ModelArgs):
"""
Initializes the MoE module.
Args:
args (ModelArgs): Model arguments containing MoE parameters.
"""
super().__init__()
torch.set_default_dtype(torch.bfloat16)
self.dim = args.dim
self.n_routed_experts = args.n_routed_experts
self.n_activated_experts = args.n_activated_experts
self.gate = Gate(args)
self.experts = nn.ModuleList(
[Expert(args.dim, args.moe_inter_dim) for _ in range(self.n_routed_experts)]
)
self.shared_experts = MLP(args.dim, args.n_shared_experts * args.moe_inter_dim)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""
Forward pass for the MoE module.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Output tensor after expert routing and computation.
"""
shape = x.size()
x = x.view(-1, self.dim) # (num_tokens, dim)
# Get weights and indices for each token's top-k experts
weights, indices = self.gate(
x
) # weights: (num_tokens, topk), indices: (num_tokens, topk)
num_tokens = x.size(0)
k = self.n_activated_experts
# Flatten indices and weights
flat_expert_indices = indices.flatten() # (num_tokens * k,) type int64
flat_expert_weights = weights.flatten() # (num_tokens * k,) type bfloat16
# Create original token indices for re-gathering later
original_token_indices = (
torch.arange(num_tokens, device=x.device, dtype=torch.int64)
.unsqueeze(1)
.expand(-1, k)
.flatten()
) # (num_tokens * k,) type int64
# Sort by expert index to group tokens for each expert
# .argsort() returns indices that sort the array
sorted_indices_permutation = flat_expert_indices.argsort()
# Replace the three gather lines with a single fused_gather_3 call
(
flat_expert_indices_sorted,
flat_expert_weights_sorted,
original_token_indices_sorted,
) = fused_gather_3(
sorted_indices_permutation,
flat_expert_indices,
flat_expert_weights,
original_token_indices,
)
y = torch.zeros_like(x) # Initialize output tensor for MoE results
# Iterate through the sorted dispatch data and process experts in batches
# torch.unique_consecutive is efficient for sorted tensors
unique_expert_ids, counts = torch.unique_consecutive(
flat_expert_indices_sorted, return_counts=True
)
current_offset = 0
for expert_id, count in zip(unique_expert_ids.tolist(), counts.tolist()):
# Slice the data for the current expert's batch
expert_slice_indices = original_token_indices_sorted[
current_offset : current_offset + count
]
expert_slice_weights = flat_expert_weights_sorted[
current_offset : current_offset + count
]
# Gather inputs for this specific expert batch from the original x
expert_input_batch = x[expert_slice_indices]
# Apply expert computation
expert_output_batch = self.experts[expert_id](expert_input_batch)
# Accumulate results back into y using index_add_
y.index_add_(
0
PyTorch Reference Code
import math
from dataclasses import dataclass
from typing import Tuple, Optional, Literal
import torch
from torch import nn
import torch.nn.functional as F
from typing import Tuple
import torch
import triton
import triton.language as tl
from triton import Config
@triton.jit
def act_quant_kernel(x_ptr, y_ptr, s_ptr, BLOCK_SIZE: tl.constexpr):
"""
Quantizes the input tensor `x_ptr` and stores the result in `y_ptr` and the scaling factor in `s_ptr`.
Args:
x_ptr (triton.Pointer): Pointer to the input tensor.
y_ptr (triton.Pointer): Pointer to the output tensor where quantized values will be stored.
s_ptr (triton.Pointer): Pointer to the output tensor where scaling factors will be stored.
BLOCK_SIZE (tl.constexpr): The size of the block to be processed by each program instance.
Returns:
None
"""
pid = tl.program_id(axis=0)
offs = pid * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
x = tl.load(x_ptr + offs).to(tl.float32)
s = tl.max(tl.abs(x)) / 448.
y = x / s
y = y.to(y_ptr.dtype.element_ty)
tl.store(y_ptr + offs, y)
tl.store(s_ptr + pid, s)
def act_quant(x: torch.Tensor, block_size: int = 128) -> Tuple[torch.Tensor, torch.Tensor]:
"""
Quantizes the input tensor `x` using block-wise quantization.
Args:
x (torch.Tensor): The input tensor to be quantized. Must be contiguous and its last dimension size must be divisible by `block_size`.
block_size (int, optional): The size of the blocks to be used for quantization. Default is 128.
Returns:
Tuple[torch.Tensor, torch.Tensor]: A tuple containing:
- The quantized tensor with dtype `torch.float8_e4m3fn`.
- A tensor of scaling factors with dtype `torch.float32`.
"""
assert x.is_contiguous()
assert x.size(-1) % block_size == 0
y = torch.empty_like(x, dtype=torch.float8_e4m3fn)
s = x.new_empty(*x.size()[:-1], x.size(-1) // block_size, dtype=torch.float32)
grid = lambda meta: (triton.cdiv(x.numel(), meta['BLOCK_SIZE']), )
act_quant_kernel[grid](x, y, s, BLOCK_SIZE=block_size)
return y, s
@triton.jit
def weight_dequant_kernel(x_ptr, s_ptr, y_ptr, M, N, BLOCK_SIZE: tl.constexpr):
"""
Dequantizes weights using the provided scaling factors and stores the result.
Args:
x_ptr (tl.pointer): Pointer to the quantized weights.
s_ptr (tl.pointer): Pointer to the scaling factors.
y_ptr (tl.pointer): Pointer to the output buffer for dequantized weights.
M (int): Number of rows in the weight matrix.
N (int): Number of columns in the weight matrix.
BLOCK_SIZE (tl.constexpr): Size of the block for tiling.
Returns:
None
"""
pid_m = tl.program_id(axis=0)
pid_n = tl.program_id(axis=1)
n = tl.cdiv(N, BLOCK_SIZE)
offs_m = pid_m * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
offs_n = pid_n * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
offs = offs_m[:, None] * N + offs_n[None, :]
mask = (offs_m[:, None] < M) & (offs_n[None, :] < N)
x = tl.load(x_ptr + offs, mask=mask).to(tl.float32)
s = tl.load(s_ptr + pid_m * n + pid_n)
y = x * s
tl.store(y_ptr + offs, y, mask=mask)
def weight_dequant(x: torch.Tensor, s: torch.Tensor, block_size: int = 128) -> torch.Tensor:
"""
Dequantizes the given weight tensor using the provided scale tensor.
Args:
x (torch.Tensor): The quantized weight tensor of shape (M, N).
s (torch.Tensor): The scale tensor of shape (M, N).
block_size (int, optional): The block size to use for dequantization. Defaults to 128.
Returns:
torch.Tensor: The dequantized weight tensor of the same shape as `x`.
Raises:
AssertionError: If `x` or `s` are not contiguous or if their dimensions are not 2.
"""
assert x.is_contiguous() and s.is_contiguous()
assert x.dim() == 2 and s.dim() == 2
M, N = x.size()
y = torch.empty_like(x, dtype=torch.get_default_dtype())
grid = lambda meta: (triton.cdiv(M, meta['BLOCK_SIZE']), triton.cdiv(N, meta['BLOCK_SIZE']))
weight_dequant_kernel[grid](x, s, y, M, N, BLOCK_SIZE=block_size)
return y
fp8_gemm_configs = [
Config({'BLOCK_SIZE_M': block_m, 'BLOCK_SIZE_N': block_n, 'BLOCK_SIZE_K': 128}, num_stages=num_stages, num_warps=8)
for block_m in [16, 32, 64] for block_n in [32, 64, 128] for num_stages in [3, 4, 5, 6]
]
@triton.autotune(configs=fp8_gemm_configs, key=['N', 'K'])
@triton.jit
def fp8_gemm_kernel(a_ptr, b_ptr, c_ptr,
a_s_ptr, b_s_ptr,
M, N: tl.constexpr, K: tl.constexpr,
BLOCK_SIZE_M: tl.constexpr,
BLOCK_SIZE_N: tl.constexpr,
BLOCK_SIZE_K: tl.constexpr):
"""
Performs a matrix multiplication operation on FP8 matrices with scaling factors.
Args:
a_ptr (tl.tensor): Pointer to the first input matrix A.
b_ptr (tl.tensor): Pointer to the second input matrix B.
c_ptr (tl.tensor): Pointer to the output matrix C.
a_s_ptr (tl.tensor): Pointer to the scaling factors for matrix A.
b_s_ptr (tl.tensor): Pointer to the scaling factors for matrix B.
M (int): Number of rows in matrix A and C.
N (tl.constexpr): Number of columns in matrix B and C.
K (tl.constexpr): Number of columns in matrix A and rows in matrix B.
BLOCK_SIZE_M (tl.constexpr): Block size for the M dimension.
BLOCK_SIZE_N (tl.constexpr): Block size for the N dimension.
BLOCK_SIZE_K (tl.constexpr): Block size for the K dimension.
Returns:
None
"""
pid_m = tl.program_id(axis=0)
pid_n = tl.program_id(axis=1)
k = tl.cdiv(K, BLOCK_SIZE_K)
offs_m = (pid_m * BLOCK_SIZE_M + tl.arange(0, BLOCK_SIZE_M)) % M
offs_n = (pid_n * BLOCK_SIZE_N + tl.arange(0, BLOCK_SIZE_N)) % N
offs_k = tl.arange(0, BLOCK_SIZE_K)
a_ptrs = a_ptr + offs_m[:, None] * K + offs_k[None, :]
b_ptrs = b_ptr + offs_n[None, :] * K + offs_k[:, None]
a_s_ptrs = a_s_ptr + offs_m * k
b_s_ptrs = b_s_ptr + (offs_n // BLOCK_SIZE_K) * k
accumulator = tl.zeros((BLOCK_SIZE_M, BLOCK_SIZE_N), dtype=tl.float32)
for i in range(k):
a = tl.load(a_ptrs, mask=offs_k[None, :] < K - i * BLOCK_SIZE_K, other=0.0)
b = tl.load(b_ptrs, mask=offs_k[:, None] < K - i * BLOCK_SIZE_K, other=0.0)
a_s = tl.load(a_s_ptrs)
b_s = tl.load(b_s_ptrs)
accumulator += tl.dot(a, b) * a_s[:, None] * b_s[None, :]
a_ptrs += BLOCK_SIZE_K
b_ptrs += BLOCK_SIZE_K
a_s_ptrs += 1
b_s_ptrs += 1
c = accumulator.to(c_ptr.dtype.element_ty)
offs_m = pid_m * BLOCK_SIZE_M + tl.arange(0, BLOCK_SIZE_M)
offs_n = pid_n * BLOCK_SIZE_N + tl.arange(0, BLOCK_SIZE_N)
c_ptrs = c_ptr + offs_m[:, None] * N + offs_n[None, :]
mask = (offs_m[:, None] < M) & (offs_n[None, :] < N)
tl.store(c_ptrs, c, mask=mask)
def fp8_gemm(a: torch.Tensor, a_s: torch.Tensor, b: torch.Tensor, b_s: torch.Tensor):
"""
Perform a matrix multiplication using FP8 precision.
Args:
a (torch.Tensor): The first input matrix, must be contiguous.
a_s (torch.Tensor): The scaling factor for the first input matrix, must be contiguous.
b (torch.Tensor): The second input matrix, must be contiguous.
b_s (torch.Tensor): The scaling factor for the second input matrix, must be contiguous.
Returns:
torch.Tensor: The result of the matrix multiplication.
"""
assert a.is_contiguous() and b.is_contiguous()
assert a_s.is_contiguous() and b_s.is_contiguous()
K = a.size(-1)
M = a.numel() // K
N = b.size(0)
c = a.new_empty(*a.size()[:-1], N, dtype=torch.get_default_dtype())
grid = lambda META: (triton.cdiv(M, META['BLOCK_SIZE_M']), triton.cdiv(N, META['BLOCK_SIZE_N']))
fp8_gemm_kernel[grid](a, b, c, a_s, b_s, M, N, K)
return c
block_size = 128
gemm_impl: Literal["bf16", "fp8"] = "bf16"
attn_impl: Literal["naive", "absorb"] = "absorb"
@dataclass
class ModelArgs:
"""
Data class for defining model arguments and hyperparameters.
Attributes:
max_batch_size (int): Maximum batch size.
max_seq_len (int): Maximum sequence length.
dtype (Literal["bf16", "fp8"]): Data type for computations.
vocab_size (int): Vocabulary size.
dim (int): Model dimension.
inter_dim (int): Intermediate dimension for MLP layers.
moe_inter_dim (int): Intermediate dimension for MoE layers.
n_layers (int): Number of transformer layers.
n_dense_layers (int): Number of dense layers in the model.
n_heads (int): Number of attention heads.
n_routed_experts (int): Number of routed experts for MoE layers.
n_shared_experts (int): Number of shared experts for MoE layers.
n_activated_experts (int): Number of activated experts in MoE layers.
n_expert_groups (int): Number of expert groups.
n_limited_groups (int): Number of limited groups for MoE routing.
score_func (Literal["softmax", "sigmoid"]): Scoring function for MoE routing.
route_scale (float): Scaling factor for routing scores.
q_lora_rank (int): LoRA rank for query projections.
kv_lora_rank (int): LoRA rank for key-value projections.
qk_nope_head_dim (int): Dimension for query-key projections without positional embeddings.
qk_rope_head_dim (int): Dimension for query-key projections with rotary embeddings.
v_head_dim (int): Dimension for value projections.
original_seq_len (int): Original sequence length.
rope_theta (float): Base for rotary positional encoding.
rope_factor (float): Scaling factor for extended sequence lengths.
beta_fast (int): Fast beta correction factor.
beta_slow (int): Slow beta correction factor.
mscale (float): Scaling factor for extended attention.
"""
max_batch_size: int = 8
max_seq_len: int = 4096 * 4
dtype: Literal["bf16", "fp8"] = "bf16"
vocab_size: int = 102400
dim: int = 2048
inter_dim: int = 10944
moe_inter_dim: int = 1408
n_layers: int = 27
n_dense_layers: int = 1
n_heads: int = 16
# moe
n_routed_experts: int = 64
n_shared_experts: int = 2
n_activated_experts: int = 6
n_expert_groups: int = 1
n_limited_groups: int = 1
score_func: Literal["softmax", "sigmoid"] = "softmax"
route_scale: float = 1.
# mla
q_lora_rank: int = 0
kv_lora_rank: int = 512
qk_nope_head_dim: int = 128
qk_rope_head_dim: int = 64
v_head_dim: int = 128
# yarn
original_seq_len: int = 4096
rope_theta: float = 10000.0
rope_factor: float = 40
beta_fast: int = 32
beta_slow: int = 1
mscale: float = 1.
def linear(x: torch.Tensor, weight: torch.Tensor, bias: Optional[torch.Tensor] = None) -> torch.Tensor:
"""
Applies a linear transformation to the incoming data: y = xA^T + b.
This function supports specialized implementations based on quantization
and tensor formats.
Args:
x (torch.Tensor): The input tensor.
weight (torch.Tensor): The weight tensor. It may be quantized and
requires dequantization for certain cases.
bias (Optional[torch.Tensor]): The bias tensor to be added. Default is None.
Returns:
torch.Tensor: The result of the linear transformation, which may involve
quantization-aware computations depending on the input parameters.
Notes:
- If `weight` is quantized (e.g., `element_size() > 1`), a dequantized version
is used for computation.
- If `gemm_impl == "bf16"`, dequantization and a `bf16` GEMM operation are applied.
- For other cases, the function applies quantization to `x` and uses `fp8_gemm` for computation.
"""
if weight.element_size() > 1:
return F.linear(x, weight, bias)
elif gemm_impl == "bf16":
weight = weight_dequant(weight, weight.scale)
return F.linear(x, weight, bias)
else:
x, scale = act_quant(x, block_size)
y = fp8_gemm(x, scale, weight, weight.scale)
if bias is not None:
y += bias
return y
class Linear(nn.Module):
"""
Custom linear layer with support for quantized weights and optional bias.
Args:
in_features (int): Number of input features.
out_features (int): Number of output features.
bias (bool): Whether to include a bias term. Defaults to False.
dtype (optional): Data type for the layer. Defaults to `torch.bfloat16`.
"""
dtype = torch.bfloat16
def __init__(self, in_features: int, out_features: int, bias: bool = False, dtype = None):
super().__init__()
self.in_features = in_features
self.out_features = out_features
self.weight = nn.Parameter(torch.randn(out_features, in_features, dtype=dtype or Linear.dtype) * in_features**-0.5)
if self.weight.element_size() == 1:
scale_out_features = (out_features + block_size - 1) // block_size
scale_in_features = (in_features + block_size - 1) // block_size
self.weight.scale = self.scale = nn.Parameter(torch.randn(scale_out_features, scale_in_features, dtype=torch.float32))
else:
self.register_parameter("scale", None)
if bias:
self.bias = nn.Parameter(torch.randn(out_features))
else:
self.register_parameter("bias", None)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""
Forward pass for the custom linear layer.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Transformed tensor after linear computation.
"""
return linear(x, self.weight, self.bias)
class RMSNorm(nn.Module):
"""
Root Mean Square Layer Normalization (RMSNorm).
Args:
dim (int): Dimension of the input tensor.
eps (float): Epsilon value for numerical stability. Defaults to 1e-6.
"""
def __init__(self, dim: int, eps: float = 1e-6):
super().__init__()
self.dim = dim
self.eps = eps
self.weight = nn.Parameter(torch.ones(dim))
def forward(self, x: torch.Tensor):
"""
Forward pass for RMSNorm.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Normalized tensor with the same shape as input.
"""
return F.rms_norm(x, (self.dim,), self.weight, self.eps)
def precompute_freqs_cis(args: ModelArgs) -> torch.Tensor:
"""
Precomputes frequency-based complex exponential values for rotary positional
embeddings.
Args:
args (ModelArgs): Model arguments containing positional embedding parameters.
Returns:
torch.Tensor: Precomputed complex exponential values for positional
embeddings.
"""
dim = args.qk_rope_head_dim
seqlen = args.max_seq_len
beta_fast = args.beta_fast
beta_slow = args.beta_slow
base = args.rope_theta
factor = args.rope_factor
def find_correction_dim(num_rotations, dim, base, max_seq_len):
"""
Computes the correction dimension for a given number of rotations in the
rotary positional embedding.
Args:
num_rotations (float): Number of rotations to compute the correction for.
dim (int): Dimensionality of the embedding space.
base (float): Base value for the exponential computation.
max_seq_len (int): Maximum sequence length.
Returns:
float: The correction dimension based on the input parameters.
"""
return dim * math.log(max_seq_len / (num_rotations * 2 * math.pi)) / (2 *
math.log(base))
def find_correction_range(low_rot, high_rot, dim, base, max_seq_len):
"""
Computes the range of correction dimensions for rotary positional embeddings.
Args:
low_rot (float): Lower bound for the number of rotations.
high_rot (float): Upper bound for the number of rotations.
dim (int): Dimensionality of the embedding space.
base (float): Base value for the exponential computation.
max_seq_len (int): Maximum sequence length.
Returns:
Tuple[int, int]: The range of correction dimensions (low, high), clamped
to valid indices.
"""
low = math.floor(find_correction_dim(low_rot, dim, base, max_seq_len))
high = math.ceil(find_correction_dim(high_rot, dim, base, max_seq_len))
return max(low, 0), min(high, dim-1)
def linear_ramp_factor(min, max, dim):
"""
Computes a linear ramp function used to smooth values between a minimum and
maximum range.
Args:
min (float): Minimum value for the ramp function.
max (float): Maximum value for the ramp function.
dim (int): Dimensionality of the ramp tensor.
Returns:
torch.Tensor: A tensor of shape (dim,) with values linearly interpolated
between 0 and 1,
clamped to the range [0, 1].
"""
if min == max:
max += 0.001
linear_func = (torch.arange(dim, dtype=torch.float32) - min) / (max - min)
ramp_func = torch.clamp(linear_func, 0, 1)
return ramp_func
freqs = 1.0 / (base ** (torch.arange(0, dim, 2, dtype=torch.float32) / dim))
if seqlen > args.original_seq_len:
low, high = find_correction_range(beta_fast, beta_slow, dim, base, args.
original_seq_len)
smooth = 1 - linear_ramp_factor(low, high, dim // 2)
freqs = freqs / factor * (1 - smooth) + freqs * smooth
t = torch.arange(seqlen)
freqs = torch.outer(t, freqs)
freqs_cis = torch.polar(torch.ones_like(freqs), freqs)
return freqs_cis
def apply_rotary_emb(x: torch.Tensor, freqs_cis: torch.Tensor) -> torch.Tensor:
"""
Applies rotary positional embeddings to the input tensor.
Args:
x (torch.Tensor): Input tensor with positional embeddings to be applied.
freqs_cis (torch.Tensor): Precomputed complex exponential values for
positional embeddings.
Returns:
torch.Tensor: Tensor with rotary embeddings applied.
"""
dtype = x.dtype
x = torch.view_as_complex(x.float().view(*x.shape[:-1], -1, 2))
freqs_cis = freqs_cis.view(1, x.size(1), 1, x.size(-1))
y = torch.view_as_real(x * freqs_cis).flatten(3)
return y.to(dtype)
class MLP(nn.Module):
"""
Multi-Layer Perceptron (MLP) used as a feed-forward layer.
Attributes:
w1 (nn.Module): Linear layer for input-to-hidden transformation.
w2 (nn.Module): Linear layer for hidden-to-output transformation.
w3 (nn.Module): Additional linear layer for feature transformation.
"""
def __init__(self, dim: int, inter_dim: int):
"""
Initializes the MLP layer.
Args:
dim (int): Input and output dimensionality.
inter_dim (int): Hidden layer dimensionality.
"""
super().__init__()
self.w1 = Linear(dim, inter_dim)
self.w2 = Linear(inter_dim, dim)
self.w3 = Linear(dim, inter_dim)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""
Forward pass for the MLP layer.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Output tensor after MLP computation.
"""
return self.w2(F.silu(self.w1(x)) * self.w3(x))
class Gate(nn.Module):
"""
Gating mechanism for routing inputs in a mixture-of-experts (MoE) model.
Attributes:
dim (int): Dimensionality of input features.
topk (int): Number of top experts activated for each input.
n_groups (int): Number of groups for routing.
topk_groups (int): Number of groups to route inputs to.
score_func (str): Scoring function ('softmax' or 'sigmoid').
route_scale (float): Scaling factor for routing weights.
weight (torch.nn.Parameter): Learnable weights for the gate.
bias (Optional[torch.nn.Parameter]): Optional bias term for the gate.
"""
def __init__(self, args: ModelArgs):
"""
Initializes the Gate module.
Args:
args (ModelArgs): Model arguments containing gating parameters.
"""
super().__init__()
self.dim = args.dim
self.topk = args.n_activated_experts
self.n_groups = args.n_expert_groups
self.topk_groups = args.n_limited_groups
self.score_func = args.score_func
self.route_scale = args.route_scale
self.weight = nn.Parameter(torch.randn(args.n_routed_experts, args.dim))
self.bias = nn.Parameter(torch.randn(args.n_routed_experts)) if self.dim == 7168 else None
def forward(self, x: torch.Tensor) -> Tuple[torch.Tensor, torch.Tensor]:
"""
Forward pass for the gating mechanism.
Args:
x (torch.Tensor): Input tensor.
Returns:
Tuple[torch.Tensor, torch.Tensor]: Routing weights and selected expert indices.
"""
scores = linear(x, self.weight)
if self.score_func == "softmax":
scores = scores.softmax(dim=-1, dtype=torch.float32)
else:
scores = scores.sigmoid()
original_scores = scores
if self.bias is not None:
scores = scores + self.bias
if self.n_groups > 1:
scores = scores.view(x.size(0), self.n_groups, -1)
if self.bias is None:
group_scores = scores.amax(dim=-1)
else:
group_scores = scores.topk(2, dim=-1)[0].sum(dim=-1)
indices = group_scores.topk(self.topk_groups, dim=-1)[1]
mask = torch.zeros_like(scores[..., 0]).scatter_(1, indices, True)
scores = (scores * mask.unsqueeze(-1)).flatten(1)
indices = torch.topk(scores, self.topk, dim=-1)[1]
weights = original_scores.gather(1, indices)
if self.score_func == "sigmoid":
weights /= weights.sum(dim=-1, keepdim=True)
weights *= self.route_scale
return weights.type_as(x), indices
class Expert(nn.Module):
"""
Expert layer for Mixture-of-Experts (MoE) models.
Attributes:
w1 (nn.Module): Linear layer for input-to-hidden transformation.
w2 (nn.Module): Linear layer for hidden-to-output transformation.
w3 (nn.Module): Additional linear layer for feature transformation.
"""
def __init__(self, dim: int, inter_dim: int):
"""
Initializes the Expert layer.
Args:
dim (int): Input and output dimensionality.
inter_dim (int): Hidden layer dimensionality.
"""
super().__init__()
self.w1 = Linear(dim, inter_dim)
self.w2 = Linear(inter_dim, dim)
self.w3 = Linear(dim, inter_dim)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""
Forward pass for the Expert layer.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Output tensor after expert computation.
"""
return self.w2(F.silu(self.w1(x)) * self.w3(x))
class Model(nn.Module):
"""
Mixture-of-Experts (MoE) module.
Attributes:
dim (int): Dimensionality of input features.
n_routed_experts (int): Total number of experts in the model.
n_activated_experts (int): Number of experts activated for each input.
gate (nn.Module): Gating mechanism to route inputs to experts.
experts (nn.ModuleList): List of expert modules.
shared_experts (nn.Module): Shared experts applied to all inputs.
"""
def __init__(self, args: ModelArgs):
"""
Initializes the MoE module.
Args:
args (ModelArgs): Model arguments containing MoE parameters.
"""
super().__init__()
torch.set_default_dtype(torch.bfloat16)
self.dim = args.dim
self.n_routed_experts = args.n_routed_experts
self.n_activated_experts = args.n_activated_experts
self.gate = Gate(args)
self.experts = nn.ModuleList([Expert(args.dim, args.moe_inter_dim) for _ in range(self.n_routed_experts)])
self.shared_experts = MLP(args.dim, args.n_shared_experts * args.moe_inter_dim)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""
Forward pass for the MoE module.
Args:
x (torch.Tensor): Input tensor.
Returns:
torch.Tensor: Output tensor after expert routing and computation.
"""
shape = x.size()
x = x.view(-1, self.dim)
weights, indices = self.gate(x)
y = torch.zeros_like(x)
counts = torch.bincount(indices.flatten(), minlength=self.n_routed_experts).tolist()
for i in range(self.n_routed_experts):
if counts[i] == 0:
continue
expert = self.experts[i]
idx, top = torch.where(indices == i)
y[idx] += expert(x[idx]) * weights[idx, top, None]
z = self.shared_experts(x)
return (y + z).view(shape)
batch_size = 128
seq_len = 1
model_args = ModelArgs()
def get_inputs():
return [torch.randn(batch_size, seq_len, model_args.dim)]
def get_init_inputs():
return [model_args]
if __name__ == "__main__":
torch.set_default_device("cuda"
Latest
From the blog
The latest industry news, interviews, technologies, and resources.
Products
MakoGenerate
company
Copyright © 2025 Mako. All rights reserved.
Products
MakoGenerate
company
Copyright © 2025 Mako. All rights reserved.
Products
MakoGenerate
company
Copyright © 2025 Mako. All rights reserved.
Products
MakoGenerate
company
Copyright © 2025 Mako. All rights reserved.
